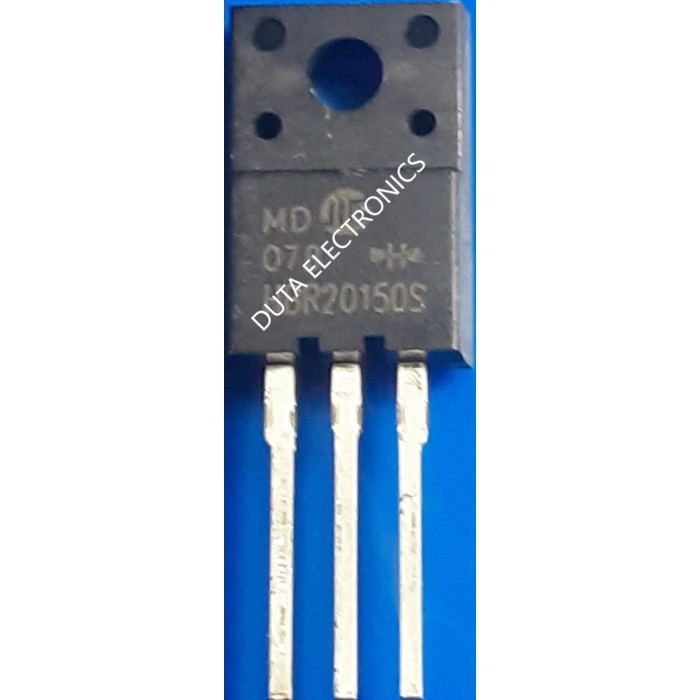

R SCHOTTKY BARRIER DIODE HBR20150S MAIN CHARACTERISTICS Package IF(AV) VRRM Tj VF(max) 20（2×10）A 150 V 175 ℃ 0.75V （@Tj=125℃） TO-22O APPLICATIONS High frequency switch power supply Free wheeling diodes, polarity protection applications TO-263 ， ， （RoHS） FEATURES Common cathode structure Low power loss, high efficiency High Operating Junction Temperature Guard ring for overvoltage protection，High reliability RoHS product TO-22OHF DPAKM ORDER MESSAGE - Halogen-Tube Order codes - - Halogen Free-Tube Halogen-Reel - Halogen Free-Reel Marking Package HBR20150S-CA-B HBR20150S-CA-BR N/A N/A HBR20150S TO-220 HBR20150S-FA-B HBR20150S-FA-BR N/A N/A HBR20150S TO-220HF HBR20150S-S-B HBR20150S-S-BR HBR20150S-S-A HBR20150S-S-AR HBR20150S TO-263 N/A N/A HBR20150S-RM-A HBR20150S-RM-AR HBR20150S DPAKM (Rev.)：201806E 1/8 R ABSOLUTE RATINGS (Tc=25℃) Parameter Symbol Repetitive peak reverse voltage VRRM Maximum DC bl.
