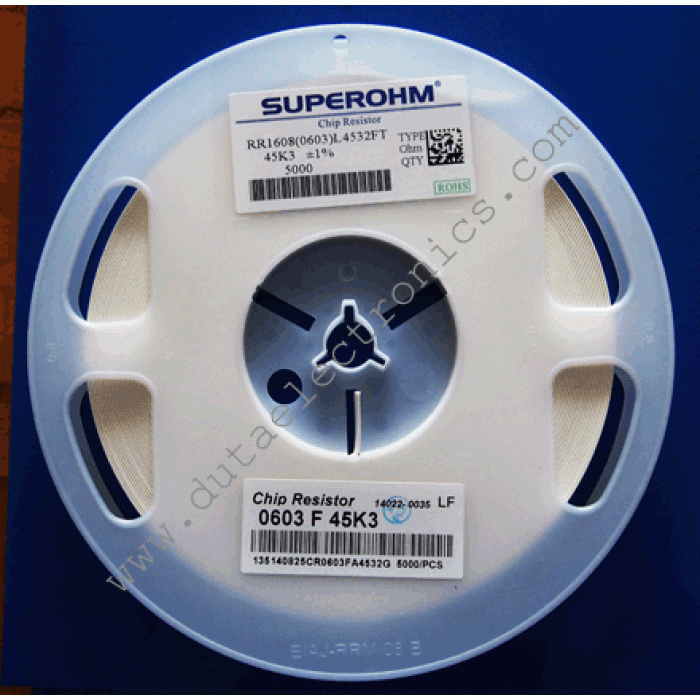

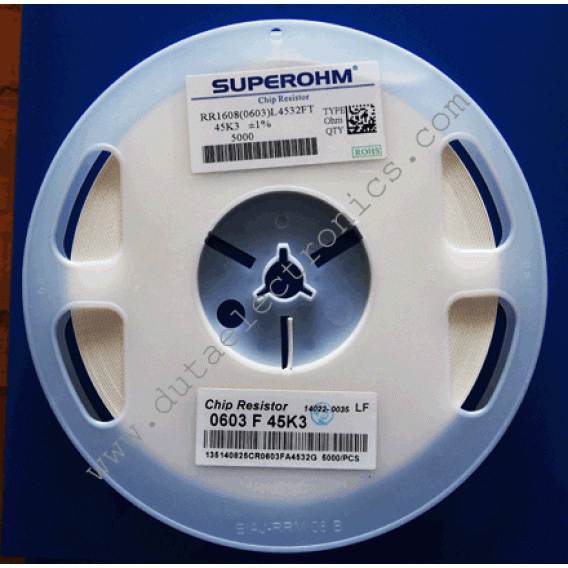

Thick Film Chip Resistor 0603 Features • Small size and light weight • Suitable for both wave and reflow soldering • Reduction of assembly costs Performance Specification Temperature Coefficient : 1Ω to 10Ω ±400PPM/°C 11Ω to 100Ω ±200PPM/°C >100Ω ±100PPM/°C Short Time Overload : ±5% : ±(2% +0.
1Ω)Max.
±1% : ±(1% +0.
