Stepper Motor Lead Screw for Creality Ender-3 3S 3Pro V2 Aquila 3D Printer Parts

Describe:

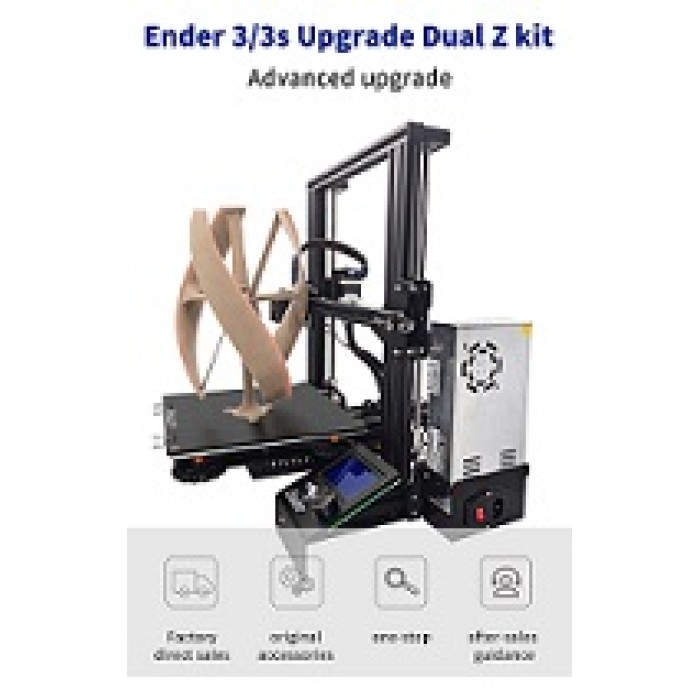

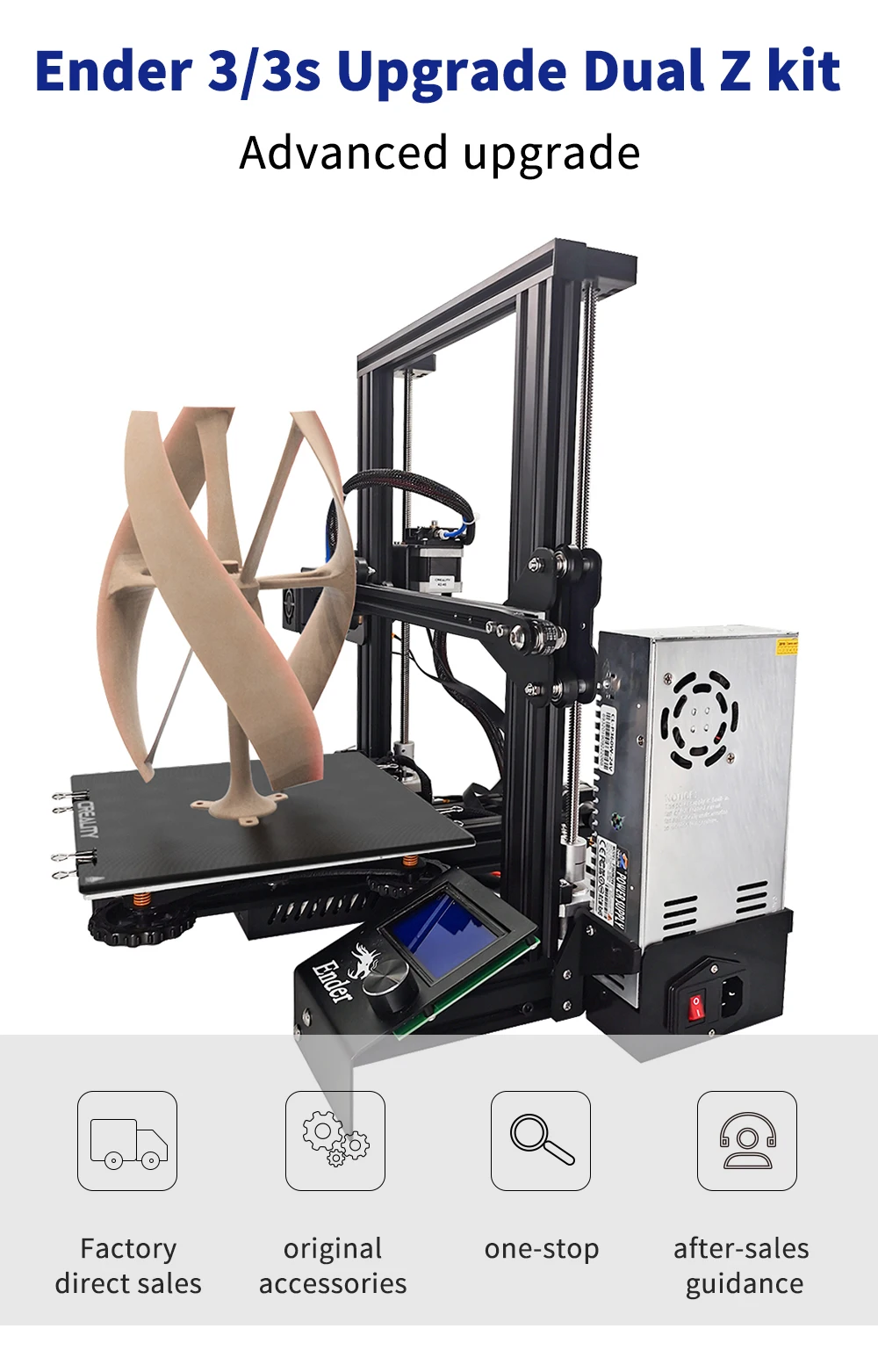

1:Upgrade 3D printers such as creality 3D Ender3/3S/3Pro/V2/Aquila to dual z-axis to improve printer stability.

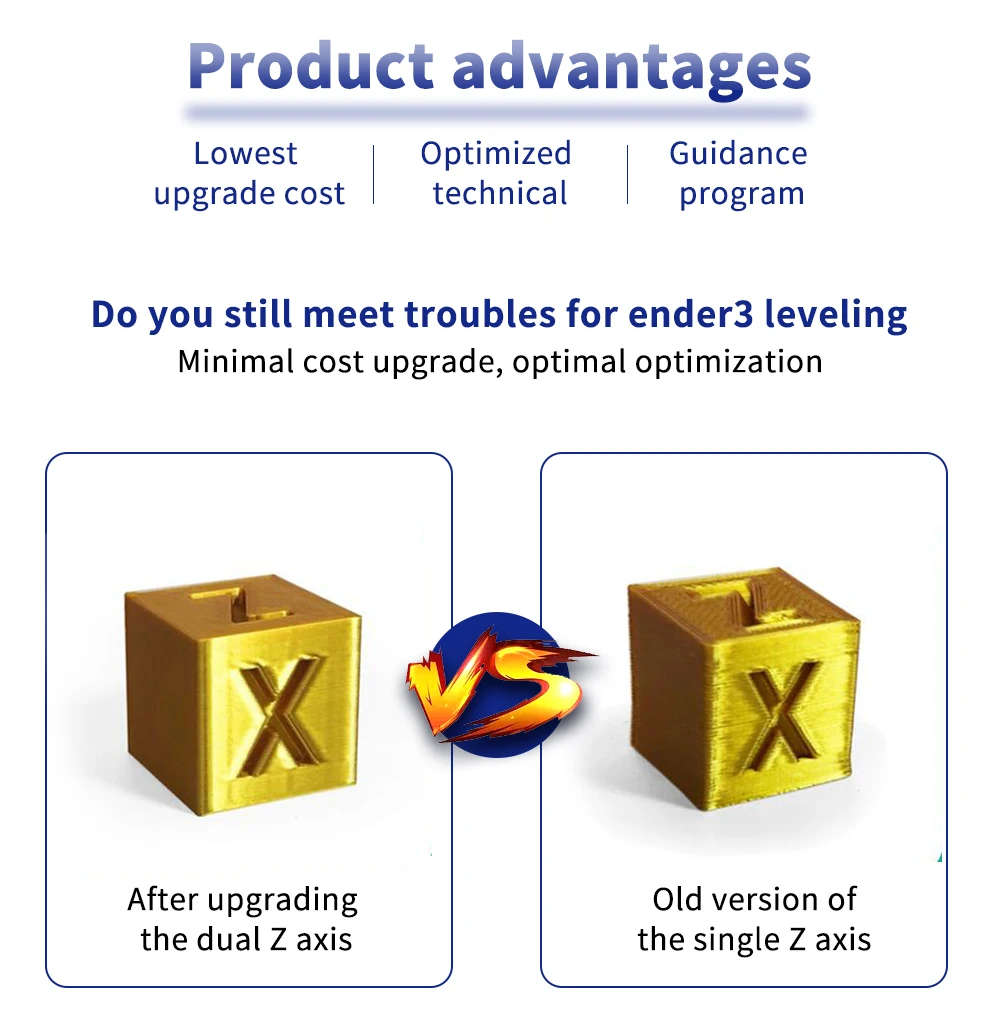

2:After the upgrade of dual Z axis, the x-axis rises steadily and runs smoothly, which completely avoids the bottom consumables stacking pressure, reduces the lamination caused by z-axis vibration, and greatly reduces the leveling difficulty and leveling times.

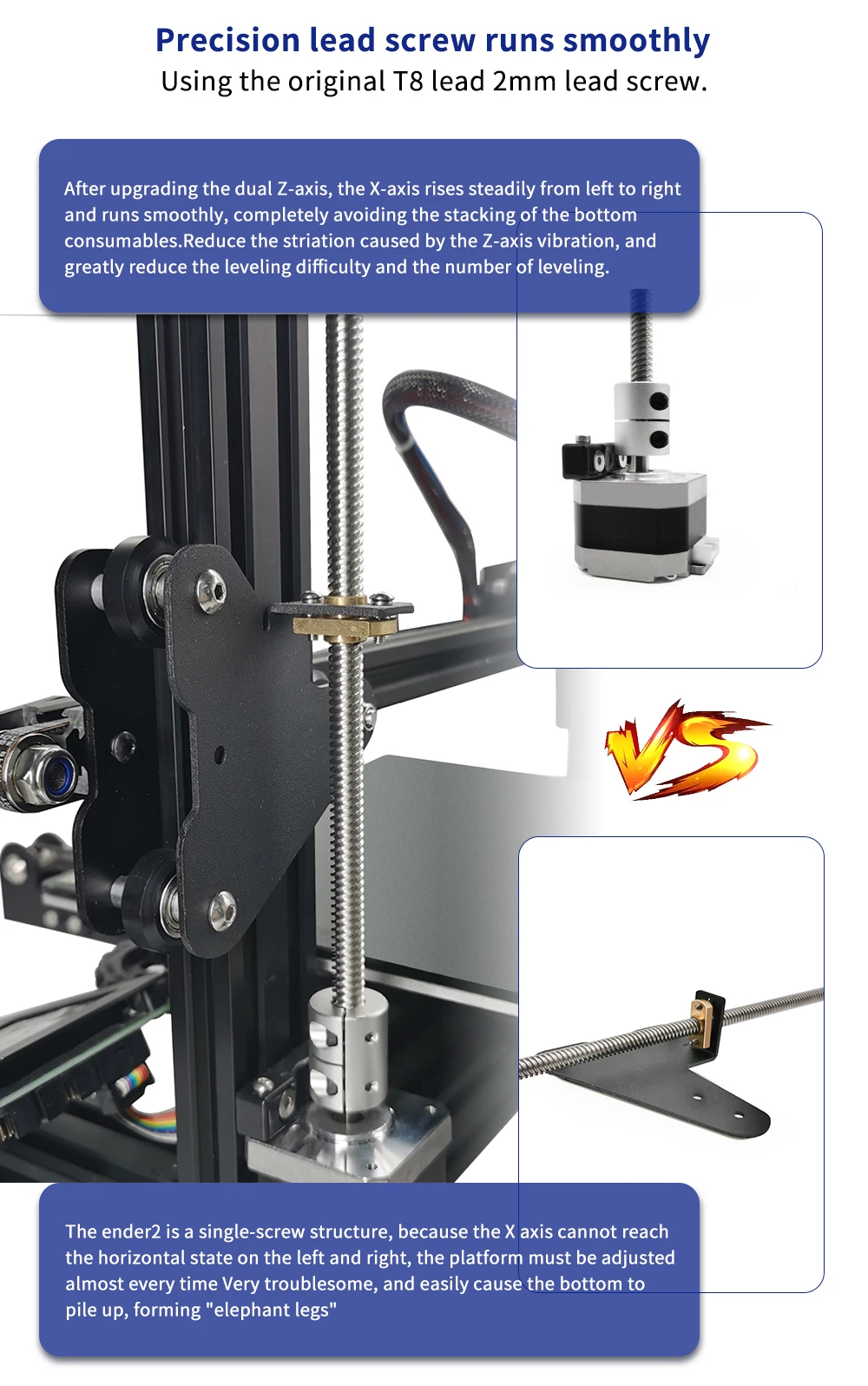

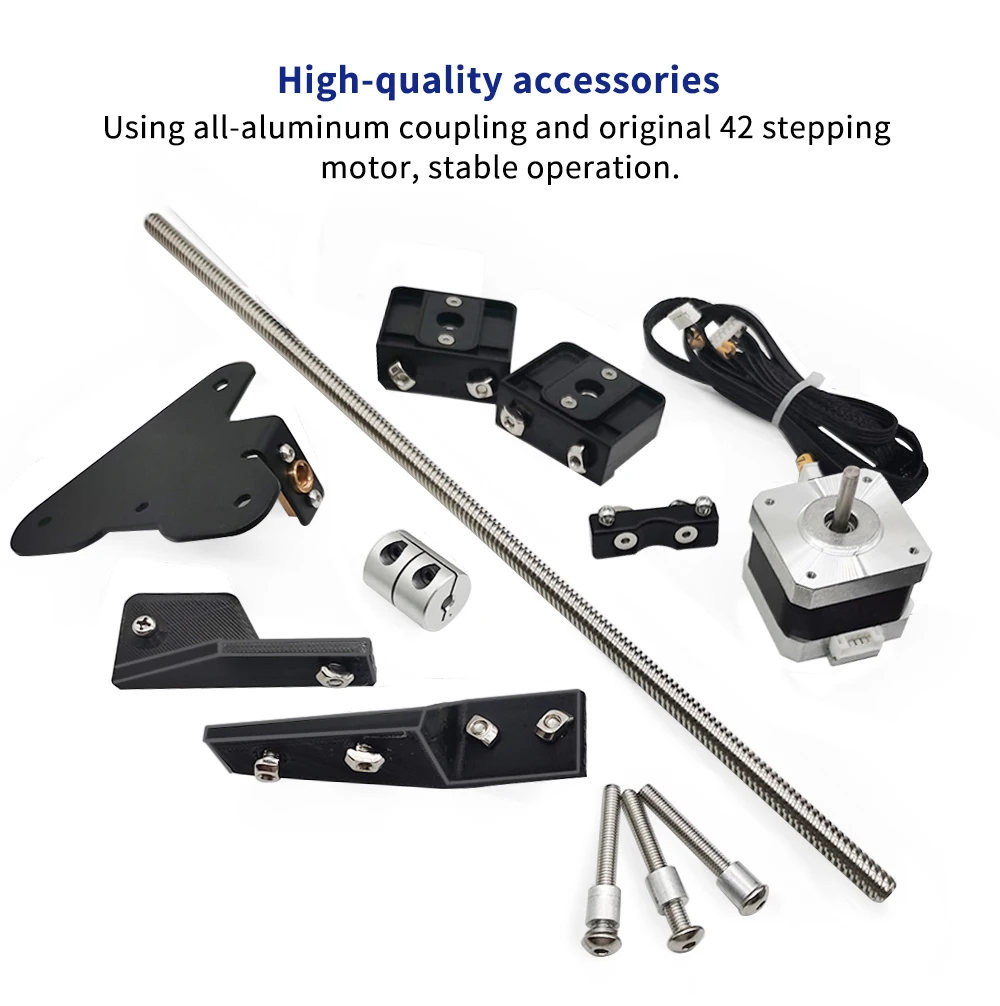

3:Use original T8 precision screw rod, it runs smoothly. All aluminum coupling and original 42 stepper motor are used, stable operation.

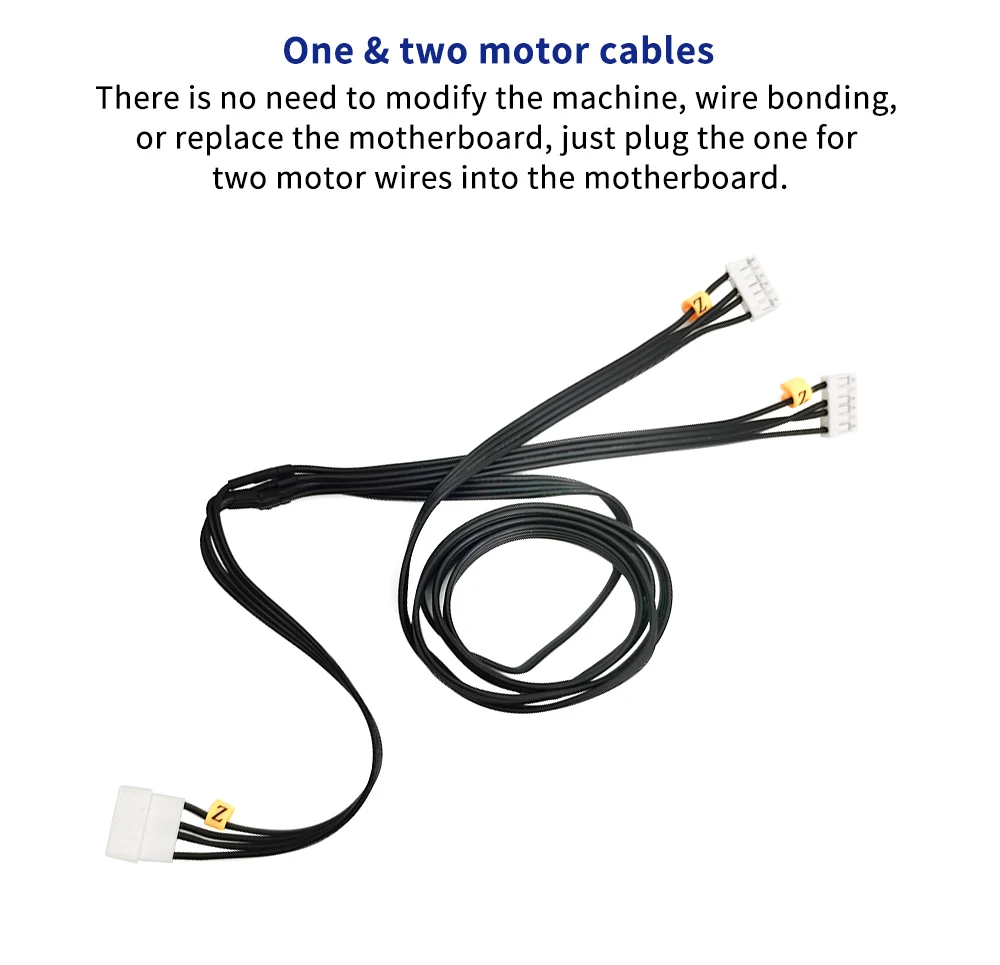

No need to weld or replace the motherboard, directly insert the one to two motor wire into the motherboard.

4:Compared with the upgraded double Z kit sold on the market, this kit contains a power fixed module, which no longer allows the power supply to be scattered freely to avoid electric shock and short circuit.

Specifications:

Color: Black

Material: Sheet Metal + Stainless Steel

Fits for: Compatible with Creality Ender 3/3S/3Pro/V2/Aquila 3D Printer

Package Size: 38 * 9 * 6.2cm / 15.0 * 3.5 * 2.4in

Package Weight: 622g / 21.9oz

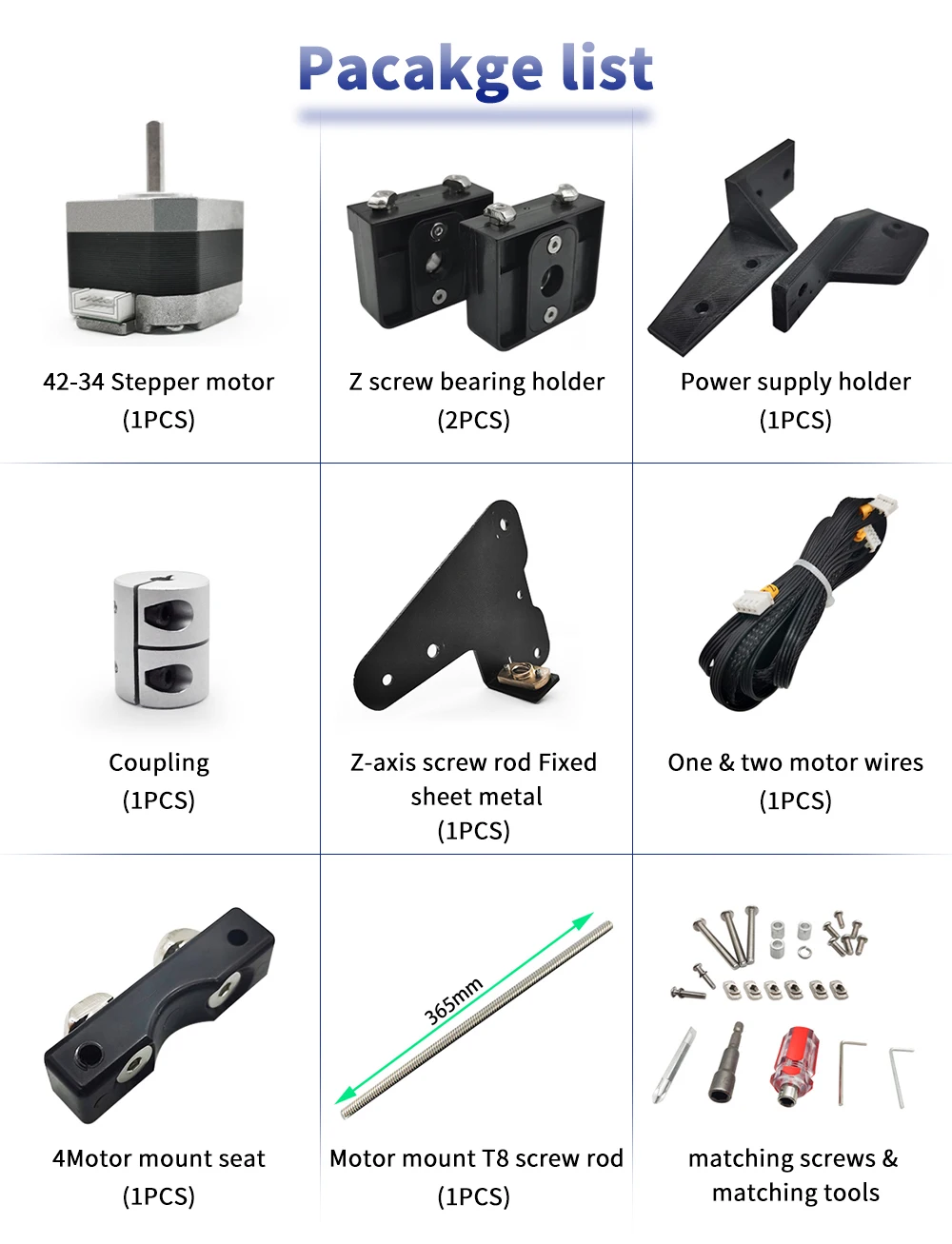

Package includes:

1 *PC 42-34 Stepper Motor

2 *PCS Lead Screw Bearing Guide

1 *Set Power Supply Holder

1 *PC Coupler

1 *PC Z Axis Lead Screw Bracket

1 *PC Dual Z Stepper Cable

1 *PC Z Motor Bracket with screws and t-nuts

1 *PC 365mm T8 Lead Screw
