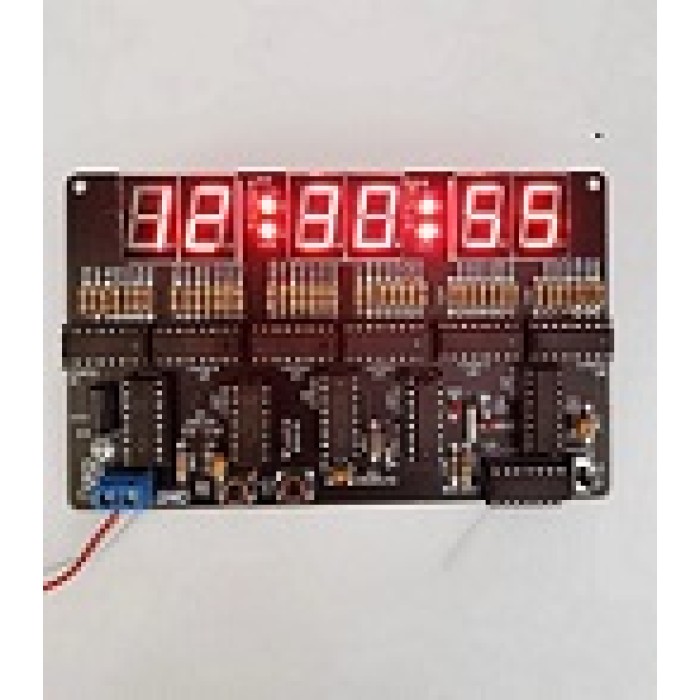

DC 4.5V-5.5V 6-bit digital circuit clock kit,
- Brand:MAXIM
- Product Code: -bit digital circuit clock kit,
- Availability: In Stock
-
Rp149,599
This product is a 24-hour digital circuit clock, using CD4518, CD4511, CD4081, CD4013, CD4060 and other chips, the circuit does not contain a microcontroller, so there is no program, hours, minutes and seconds can be calibrated, without alarm function. Features
1. This is a 24-hour digital circuit clock kit, using CD4518, CD4511, CD4081, CD4013, CD4060 and other chips.
2. The product is made of high quality material, quality is guaranteed.
3. Can be used for teaching practical training welding, very suitable for DIY enthusiasts
4. Stable product performance, long service life
5. The use of red digital tube, digital clear at a glance DIY Kit List:
PCB board X1
0.56 digital tube 1 bit common negative X6
470 ohm resistor X2
1K resistor X50
2.2K resistor X3
100K Resistor X1
10M resistor X1
1N4148 Diode X4
103 Monolithic Capacitor X3
32.768KHZ crystal X1
30P Porcelain Chip Capacitor X2
25V 100UF Capacitor X1
KF301-2PX1
6*6*5 Keypad X1
12D07 Toggle Switch X1
16P IC Block X10
14P IC Block X 2
CD4511X6
CD4518X3
CD4081X1
CD4060X1
CD4013X1
